UV Curing Equipments

Request to Call Back Send Inquiry

Product Description

UV Curing Equipments

We offer UV Curing Equipments for various coating applications as per client requirements.

Technical Specifications

Roller coater and curing - for board

Machine Model	Floor space	Power, UV mode	Power, IR mode	No. of lamps	Coater type	Max. sheet width
UVIRCC-24	5 m x 1.4 m	12kw	14kw	1-UV, 3-IR	Roller	24" or 600 mm
UVIRCC-30	5 m x 1.4 m	13kw	16kw	1-UV, 3-IR	Roller	30" or 750mm
UVIRCC-40	5 m x 1.6 m	24kw	20kw	2-UV, 3-IR	Roller	40" or 1000mm

Roller coater and curing - for paper and board

Machine Model	Floor space	Power, UV mode	Power, IR mode	No. of lamps	Coater type	Max. sheet width
UVIRCC-24TS	5 m x 1.4 m	14kw	14kw	1-UV, 3-IR	Roller	24" or 600 mm
UVIRCC-30TS	5 m x 1.4 m	15kw	16kw	1-UV, 3-IR	Roller	30" or 750mm
UVIRCC-40TS	5 m x 1.6 m	26kw	20kw	2-UV, 3-IR	Roller	40" or 1000mm
Compressor power consumption of 5HP is additional for paper attachment air knife system

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

UV Curing Equipments for Offset UV Inks

Send Inquiry

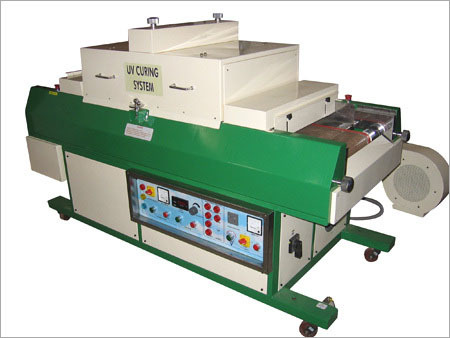

UV Curing Equipment for PVC Profiles
